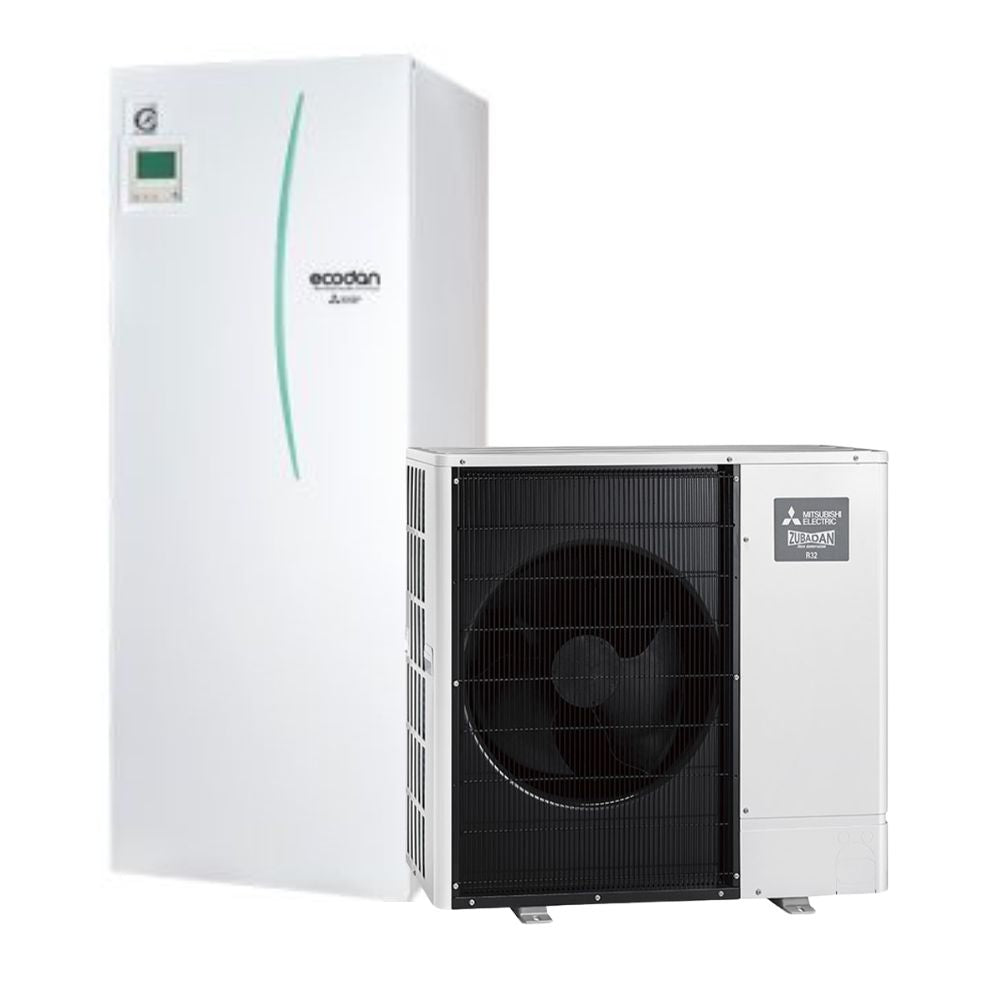

Heat pump Mitsubishi Zubadan PUD-SHWM140YAA + Hydraulic tank EHST20D-YM9D
Heat pump Mitsubishi Zubadan PUD-SHWM140YAA + Hydraulic tank EHST20D-YM9D
Regular price
€10.975,00 EUR
Regular price
Sale price
€10.975,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Mitsubishi heat pump Zubadan PUD-SHWM 140 YAA (Split, 14 kW, R32)
The standard of efficiency and reliability for your home!
The latest generation Mitsubishi Zubadan PUD-SHWM series outdoor unit with R32 refrigerant offers an excellent solution for energy-efficient heating and cooling. This 14 kW unit is designed to provide maximum comfort and reliability even in the harshest weather conditions.
Main features and benefits:
1. Stability in any conditions:
The Zubadan system is equipped with an HIC subcooler and a flash injection compressor , which maintains stable refrigerant circulation even at very low outdoor temperatures. It is especially suitable for winters when constant and efficient heating is required.
2. Quiet and efficient operation:
Electronic expansion valves provide:
- Reduce pressure and noise,
- More efficient operation of the cooling circuit,
- Longer system life.
3. Safety and quality:
The low-pressure two-phase refrigeration circuit is pre-charged with safe refrigerant and includes:
- High pressure sensor,
- Filters and oil separators,
- Manifold and service/charging connections with shut-off valves.
In addition, the cooling circuit is pressure, leak and durability tested to guarantee the highest quality.
| Model: | PUD-SHWM140YAA |
| Number of indoor air/water units: | 1 |
| Hydraulic block: | EHST20D-YM9D Hydraulic tank |
| Water heating: | |
| Dimensions: | width 1050 mm, height 1020 mm, depth 480 mm |
| Power supply voltage: | 400/3/50 V/F/Hz |
| Weight net: | 122 kg |
| Performance, Thermal Specifications MAX: | ( A 7/ W 45) 13.90 kW (according to EN 14511) |
| Productivity, MAX. thermal power: | ( A 2/ W 35) 14.60 kW (according to EN 14511) |
| A 7/ W 35 / power / input / COP: | 12/2.55/4.70 |
| Power, nominal power range: | 3.10–13.20 kW (according to EN 14511) |
| Acoustic power level: | 62 dB(A) |
| Noise level: | 48 dB(A) free field measurement at 1 m distance |
| Refrigerant: | R32, refrigerant quantity 1.70 kg |

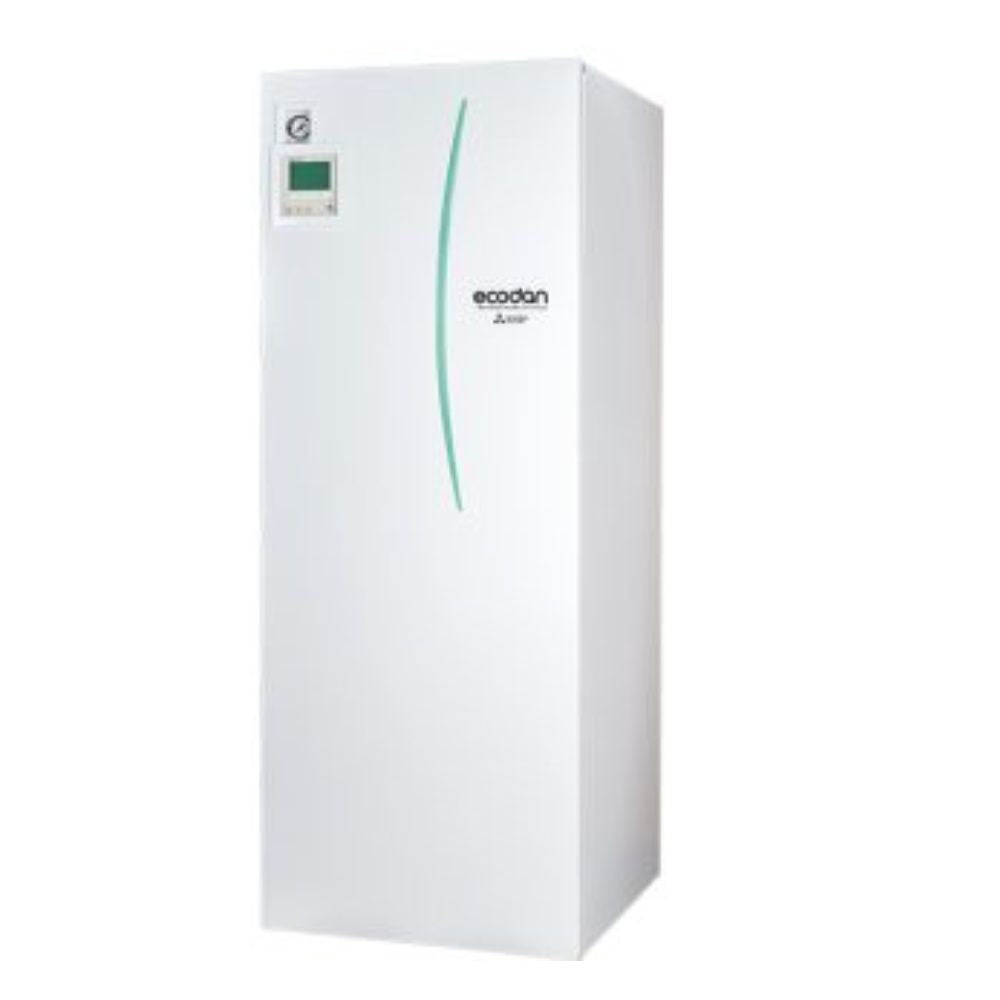

| Mitsubishi EHST20D-YM9D, indoor unit with 200 l tank, hydraulic tank, R32 | |
| The Mitsubishi Ecodan hydraulic tank, which can be connected to all new Ecodan and Zubadan outdoor units with R32 refrigerant, is the solution for those who want easy and fast access to renewable energy sources. Innovative technology combined with ease of use and absolute reliability. Ecodan from Mitsubishi Electric is the heating standard of the future – for new buildings and retrofits. |
| Specifications: | |
| Device dimensions | mm | H x W x D: | 595 × 1600 × 680 |
| Fuse: | 3×16A |
| Indoor unit version: | Hydro tank |
| Heating energy efficiency: | A++ |
| Device type: | Hot water and heating |
| Weight in kg: | 106 |
| Refrigerant liquid connection line supply: | 1 x 1/4 inch (6.35 mm) |
| Gas suction refrigerant liquid connection line: | 1 x 1/2 inch (12.7 mm) |
| Sound power level of indoor cooling/heating equipment (dB(A)): | 40 |
| Indoor unit supply voltage: | 380-415 V/3 phase/50 Hz, N, PE |
| Heat pumps | System: | Split system |
| Heat pumps | Type: | Air - Water |
| WiFi/WLAN function: | Option |
| Additional heating | kW: | 9.0 |
| Additional heating stages: | 3+6+9 |
